Technical Card Picture/Notes Operations
It is used to add an image to the Technical Sheet.

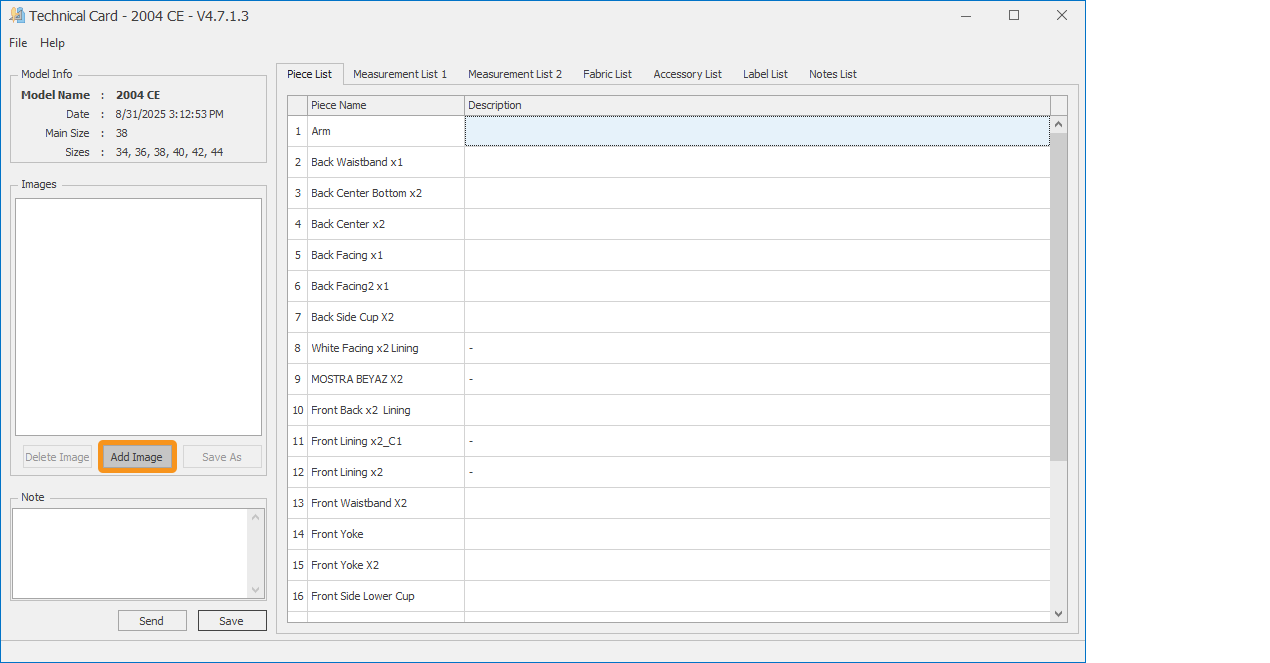

1.) In the Technical Sheet window, click the Add Image button.

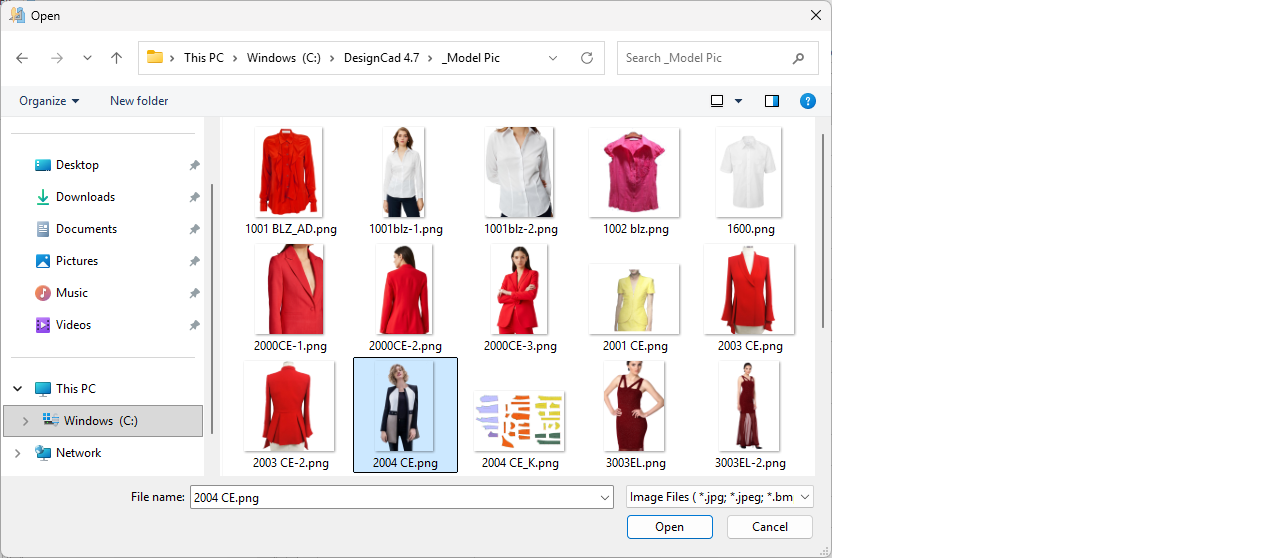

2.) In the opened window, select the image to be added and click Open to insert it into the Technical Sheet.

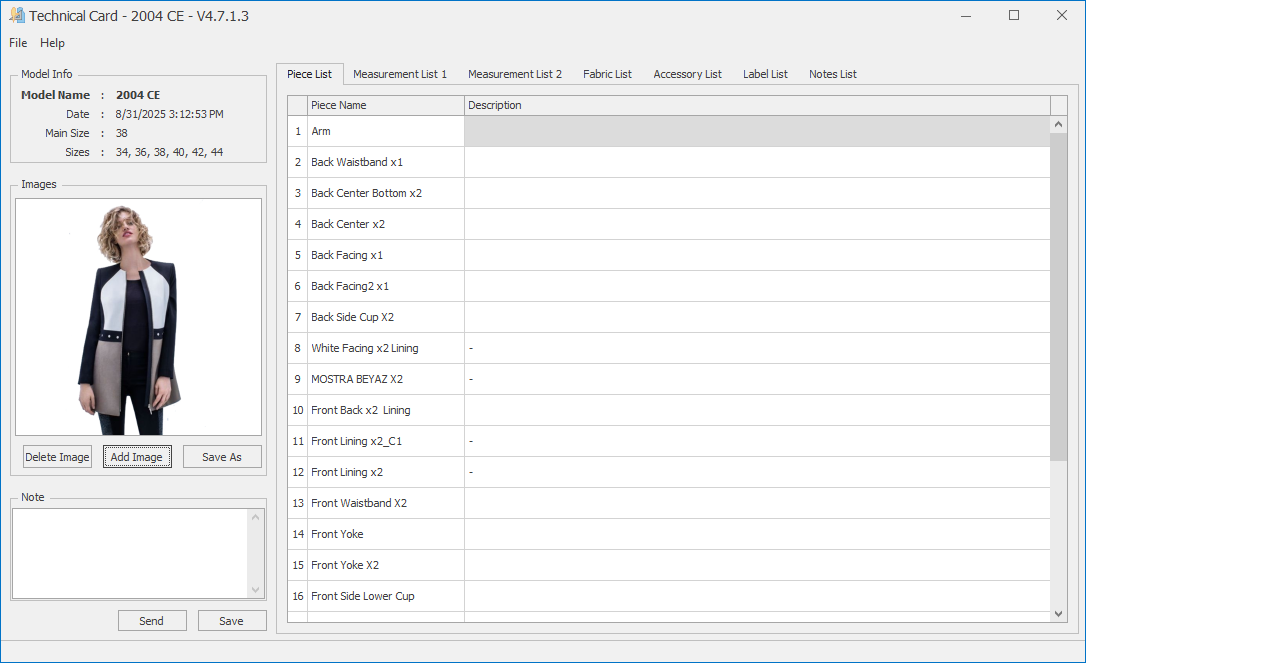

The displayed image is deleted with the Delete Image button.

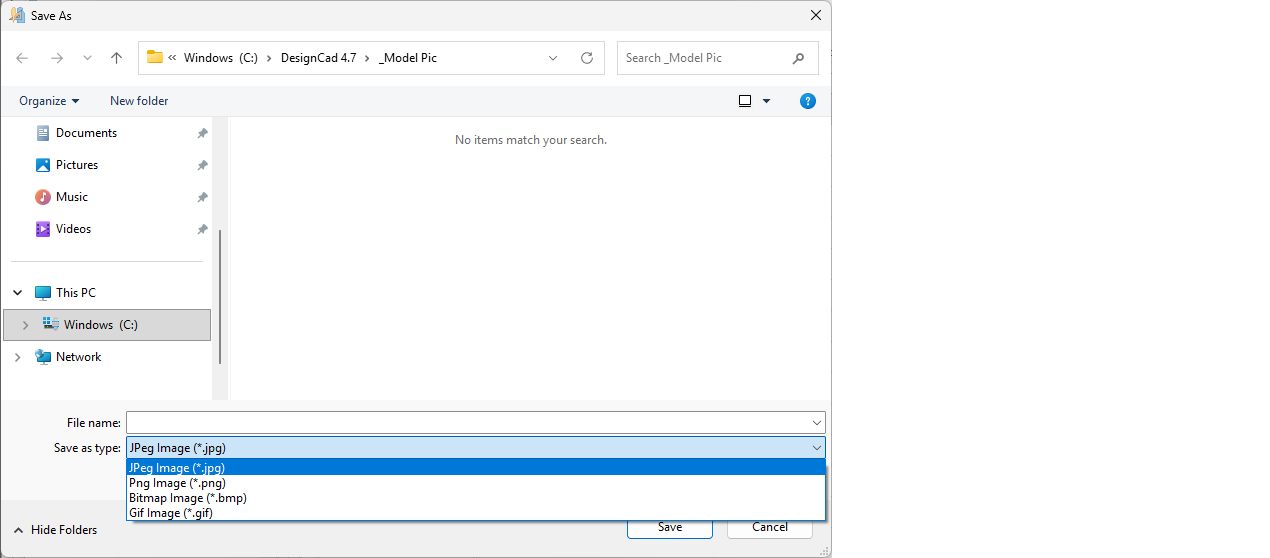

With the Save As button, the displayed image can be saved in the desired location in an image format (jpeg, png, bmp, or gif).

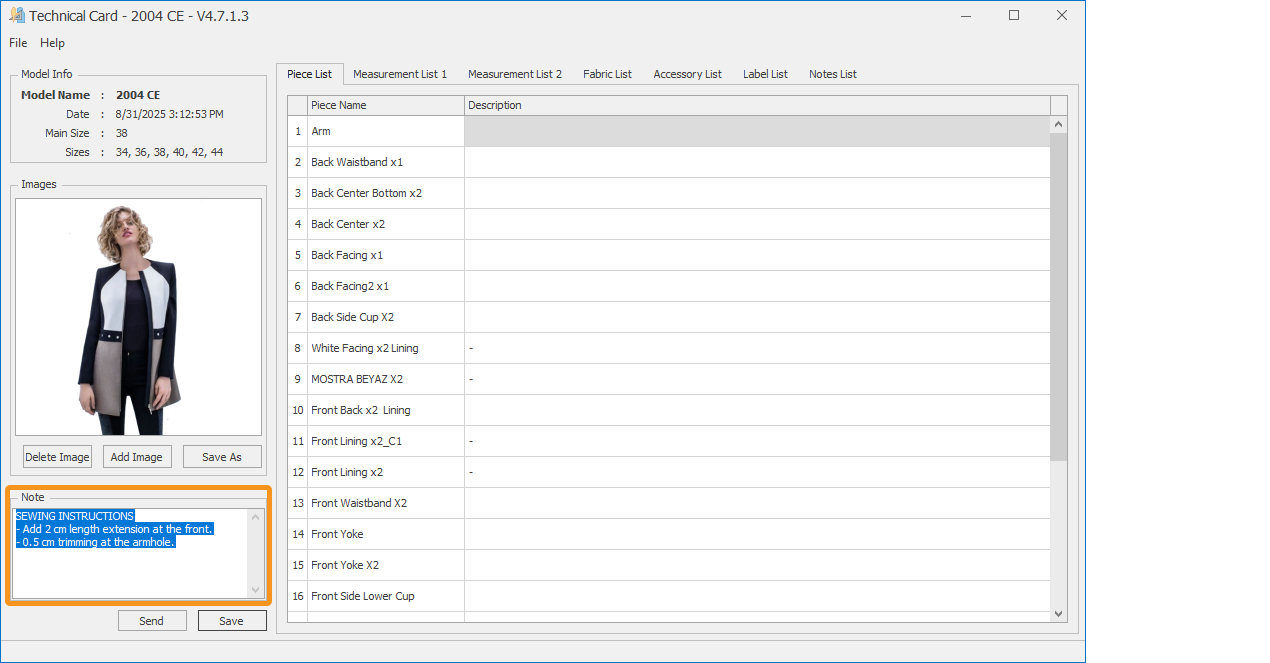

To add a note to the Technical Sheet, click the Note section with the mouse, write the note related to the model, and save it by clicking the Save button.
The note added to the Technical Sheet is also displayed in the Notes section of the Main Screen and the Model Design screen.
