Add Piece

To add a part from another model to the current model, follow these steps:

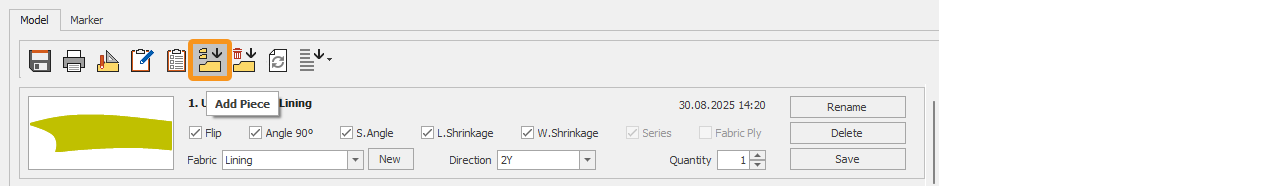

In the Model Design screen, click the Add Piece icon from the Model tab.

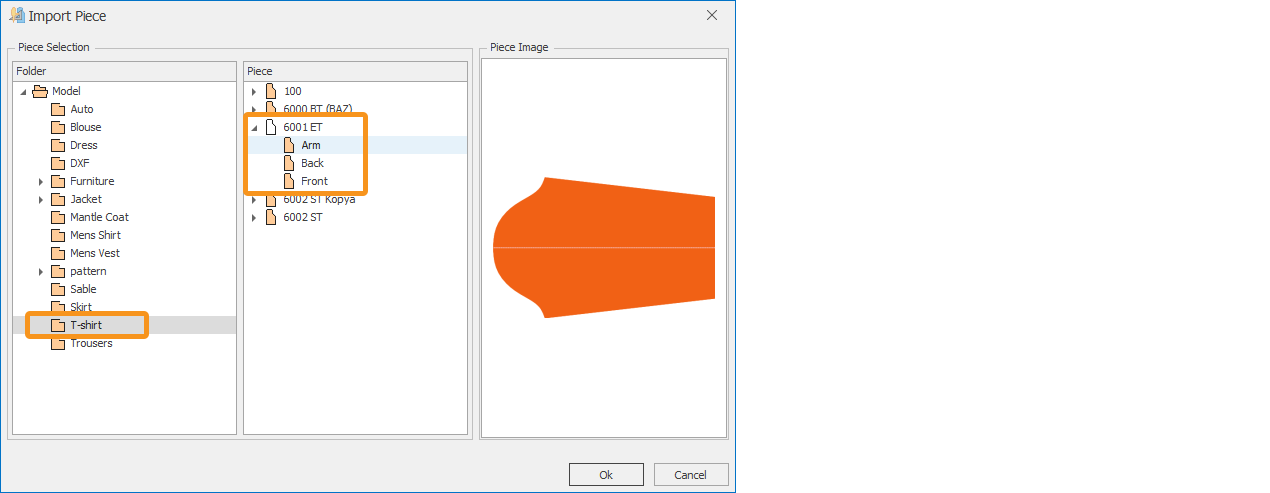

The Import Piece window will open. Select the model and the part within the model (a preview of the selected part will be displayed).

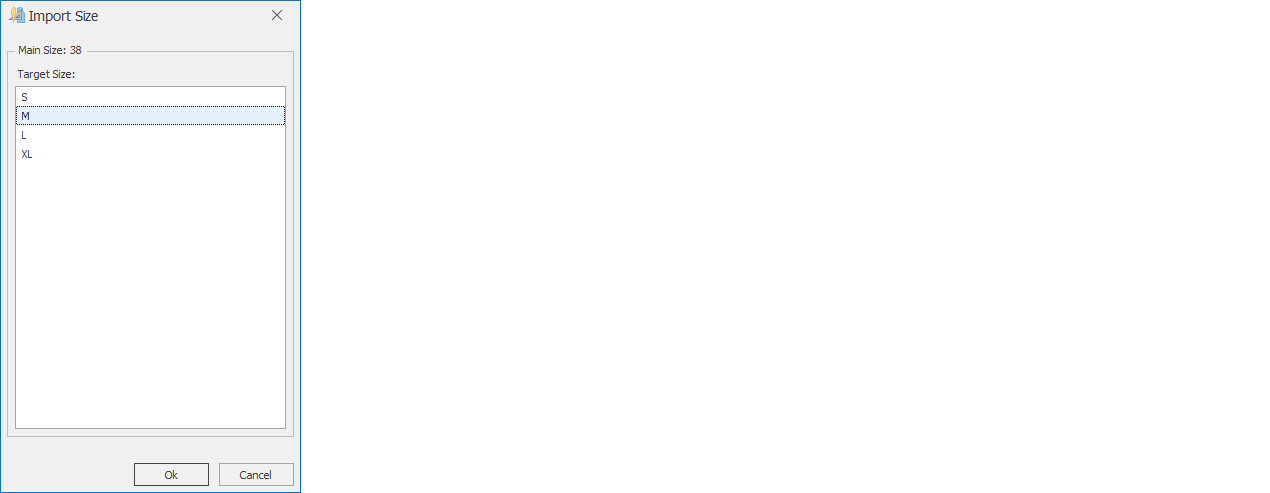

Click the Ok button, and the Import Size window will open. Select the size to be imported.

If a part with the same name already exists in the model, a new name will be assigned to the part.

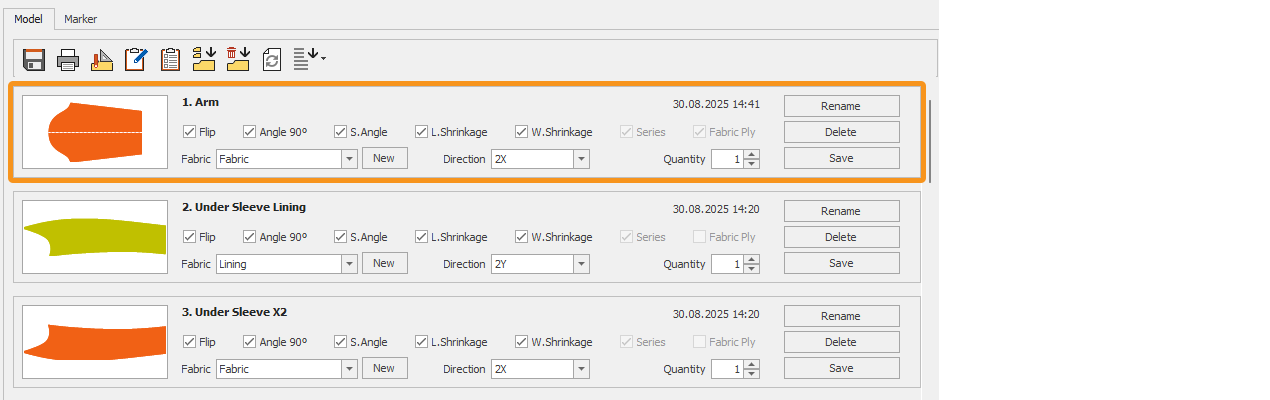

Click the Ok button to add the part to the model.

The imported part will come with its own series assignment. If there are additional sizes in the called model, the size range of the part's size group will be continued, with the smallest and largest size assignments carried over.
