Delete/Reduce/Replace Point

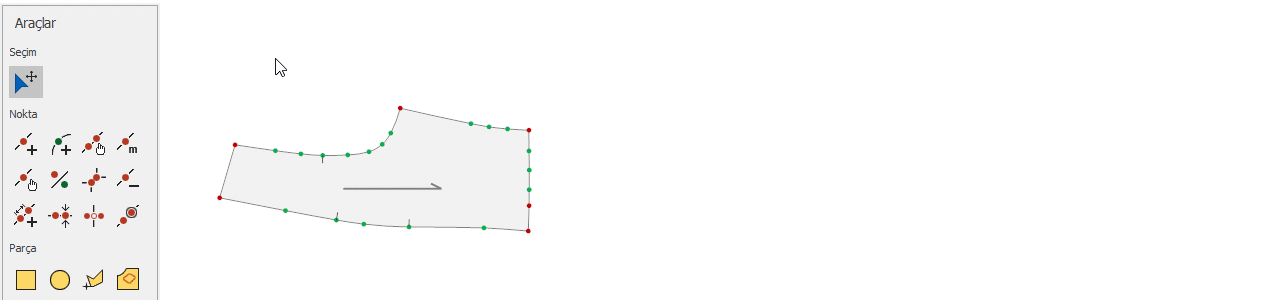

Delete Point
To delete points on the piece line in the Pattern Design screen, follow these steps:
- In the Pattern Design screen, click the "Delete Point"
option in the "Point" menu. - Select the point or points to be deleted with the mouse. Press the right mouse button or the "Enter" key on the keyboard to delete them.

Reduce Points
To reduce the points between two points selected in clockwise direction, follow these steps:
- Select the Reduce Points
option in the "Point" menu. - Select the start point (point 1) and the end point (point 2) of the line to be reduced, in clockwise direction.
- When the end point is clicked, the excess points on the line are deleted.

| Note: If the operation is repeated, the line may become distorted. |
Straighten Line
Used to turn the curved line between two corner points into a straight line. The points in between are not deleted; they are distributed proportionally along the straight line, so grading and seam connections are preserved.
- In the Pattern Design screen, open the Point menu and click the Straighten Line
option. - Click the start point (point 1) and then the end point (point 2) of the line to be straightened with the mouse.
- The line between the two points becomes a straight line.

The program warns you if the range contains a corner (red) point, a point with its own grading, or a dart point. It can be used on the piece line and on internal shapes. Clicking the same point a second time cancels the selection.

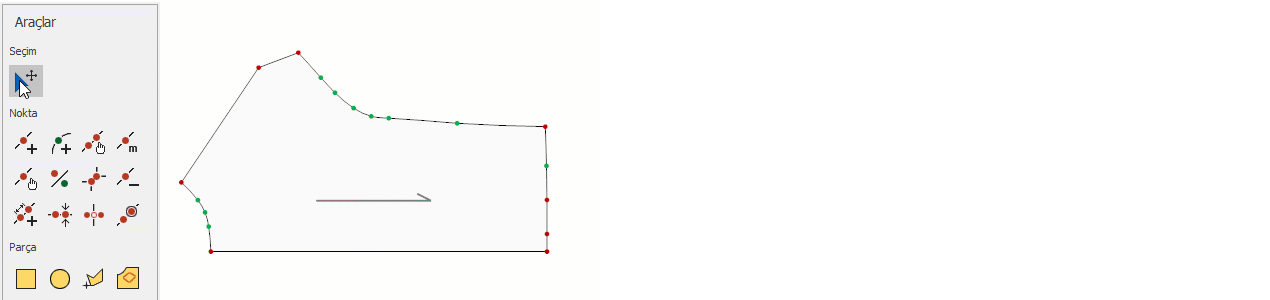

Change Point Type
Changing the Point Type (Corner/Curve) in the Pattern Design Screen
- In the Pattern Design screen, click the Point menu and then the Change Point Type
option. - Click the point you want to change with the mouse. A corner point is changed to a curve point, and a curve point is changed to a corner point.
