Internal Line Copy/Paste/Delete

Copy and Paste Internal Shape

Used to copy an internal shape within a piece and paste it either into the same piece or into a different piece.

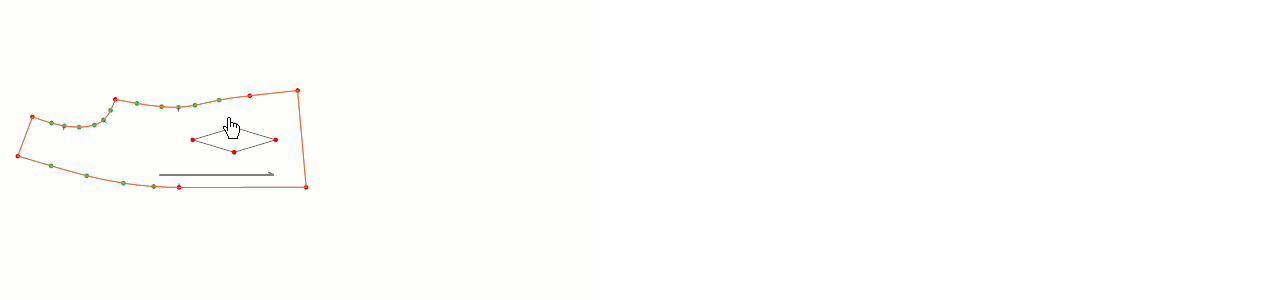

1.) In the Pattern Design screen, click Internal Shape > Copy Internal Shape

2.) Select the internal shape to be copied with the mouse and store it in memory.

• During copying, whichever point of the internal shape is selected will be used as the reference point during the paste process.

3.) In the Pattern Design screen, click Internal Shape > Paste Internal Shape   (The target point for the pasted internal shape is defined.)

4.) Define the target point for the pasted internal shape. (The target point can be either an internal point inside the piece or a point on the piece line.)

In the window that opens:

• Enter the X and Y coordinates representing the distance between the reference point of the copied shape and the target point.
• Confirm with OK to complete the process and paste the internal shape.

 Delete Internal Shape

Used to delete an internal shape inside a piece.

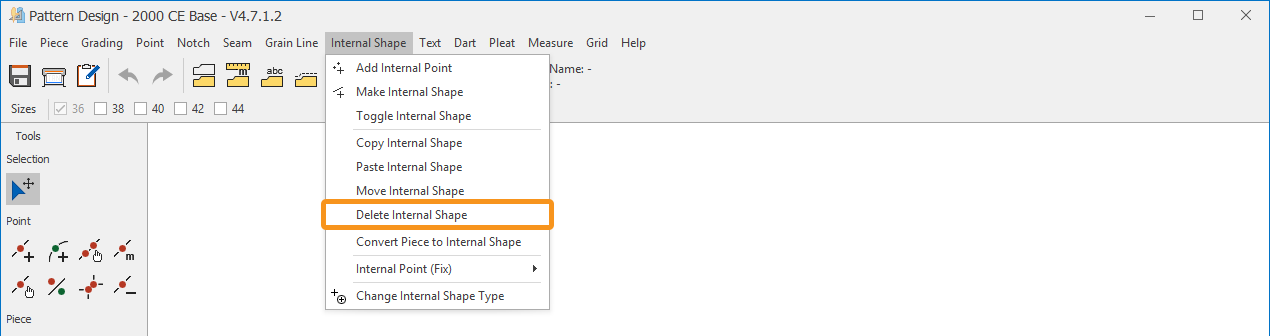

1.) In the Pattern Design screen, click Internal Shape > Delete Internal Shape

2.) Click the internal shape to be deleted with the mouse, and the internal shape is removed.
